Wooden Pallets for Industrial Use
The purpose of the pallet is to transport and manipulate products in a stable way that is safe and efficient for the industry needs. The rectangular or squared shaped pallet design facilitates its manipulation through the use of pallet jacks or forklifts.
At DINC, we manufacture wooden pallets for industrial use. Some of the material that we use on our products include: new wood, recycled wood, metal racks and polymer composites depending on the necessities of each one of our clients.
Our raw material used to manufacture our wooden products is high quality selected recycled wood. Our selected recycled wood is collected within the same industry. Then, it is disassembled and processed for the manufacturing of new pallets, which we categorize as rigid packaging.
At DINC, our pallets are manufactured under the standard
NOM-144-SEMARNAT-2012 national rule that establishes the internationally recognized phytosanitary measures for the wooden packing that is used in the international trade of goods and merchandises, thereby ensuring the free transit of goods in any customs authority of any country.
- Pallet 114×114
- Euro 120×80
- Cementera 100×120
- Cerrada 102×122
- Block 102×122
- Barrote 102×122

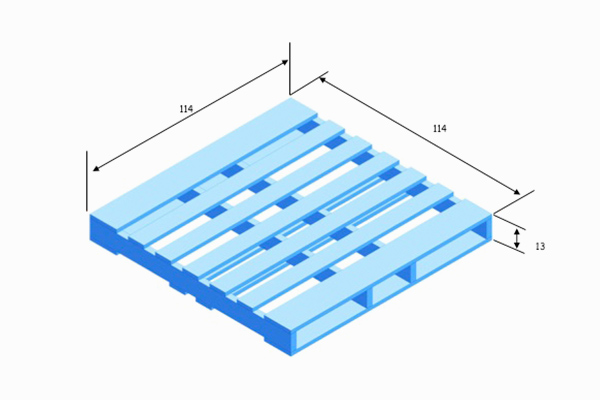

PALLET 45in × 45in (1.14m x 1.14m)
| Material | Recycled Wood |
|---|---|
| Cut Tolerance | + / – 3/16” |
| Tolerancia al Ensamble | + / – 3/16” |
| Thinckness Tolerance | + / – 3/16” |
| Pallet Weight | 24 KG |
| Distributed static load capacity | 1,000 KG |
- Regular cover with separation between staves.
- Lower base four staves.
- Four bars without side entries as load shafts.
- Rolled and cemented 2” nails.
- The separation of the central bars is 8”.

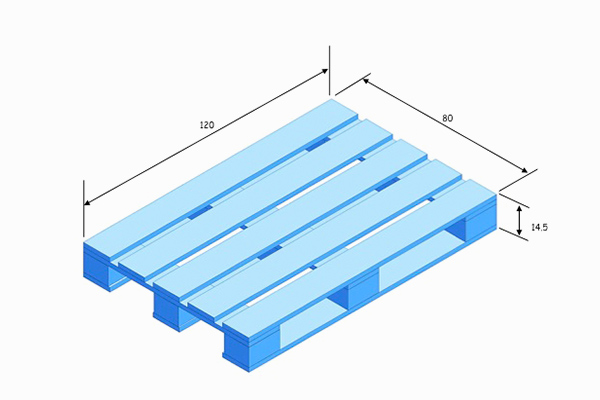

Euro 48in × 31½in (1.20m x 0.80m)
| Material | Recycled Wood |
|---|---|
| Cut Tolerance | + / – 3/16” |
| Assembly Tolerance | + / – 3/16” |
| Thinckness Tolerance | + / – 3/16” |
| Pallet Weight | 22 KG |
| Distributed static load capacity | 1,200 KG |
- Regular cover with separation between staves.
- Lower frame open
- Three connecting boards with blocks as load shafts.
- 2½ "rolled and cemented nails.

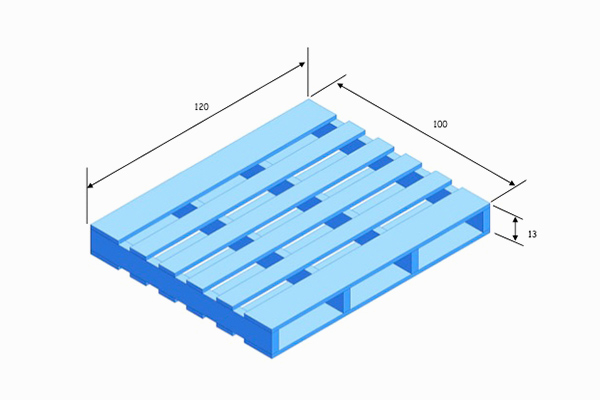

Cementera 40in × 48in (1.0m x 1.20m)
| Material: | Recycled Wood |
|---|---|
| Cut Tolerance | + / – 3/16” |
| Assembly Tolerance | + / – 3/16” |
| Thinckness Tolerance | + / – 3/16” |
| Pallet Weight | 24 KG |
| Distributed static load capacity | 1,400 KG |
- Regular cover with separation between staves.
- Regular base with the same number of staves as on deck.
- Four bars without side entries as load shafts.
- Rolled and cemented 2” nails.

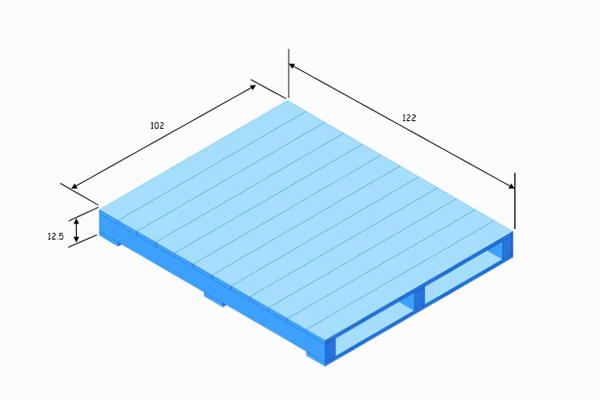

Cerrada 40in × 48in (1.0m x 1.20m)
| Material | Recycled Wood |
|---|---|
| Cut Tolerance | + / – 3/16” |
| Assembly Tolerance | + / – 3/16” |
| Thickness Tolerance | + / – 3/16” |
| Pallet Weight | 20 KG |
| Distributed static load capacity | 1,200 KG |
- Closed cover without separation between staves.
- Lower base of three staves.
- Three bars without side entries as load shafts.
- Rolled and cemented 2” nails.

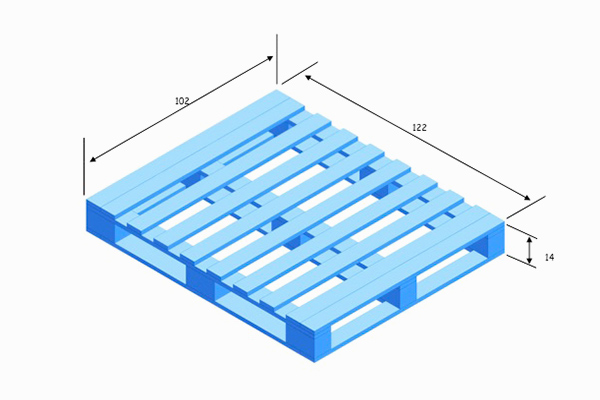

Block 40in × 48in (1.0m x 1.20m)
| Material | Recycled Wood |
|---|---|
| Cut Tolerance | + / – 3/16” |
| Assembly Tolerance | + / – 3/16” |
| Thinckness Tolerance | + / – 3/16” |
| Pallet Weight | 18 KG |
| Distributed static load capacity | 1,100 KG |
- Regular cover with separation between staves.
- Bottom frame closed.
- Three connecting boards with blocks as load shafts.
- Rolled and cemented 2½ ”nails.

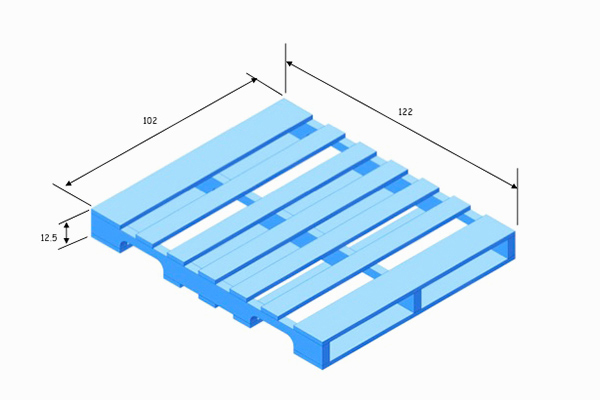

Barrote 40in × 48in (1.0m x 1.20m)
| Material | Recycled Wood |
|---|---|
| Cut Tolerance | + / – 3/16” |
| Assembly Tolerance | + / – 3/16” |
| Thinckness Tolerance | + / – 3/16” |
| Pallet Weight | 18 KG |
| Distributed static load capacity | 900 KG |
- Regular cover with separation between staves.
- Lower base four - five staves.
- Three bars with side entrances as load shafts.
- Rolled and cemented 2” nails.
-
